Intelligent Machine Productivity In A Compact Footprint

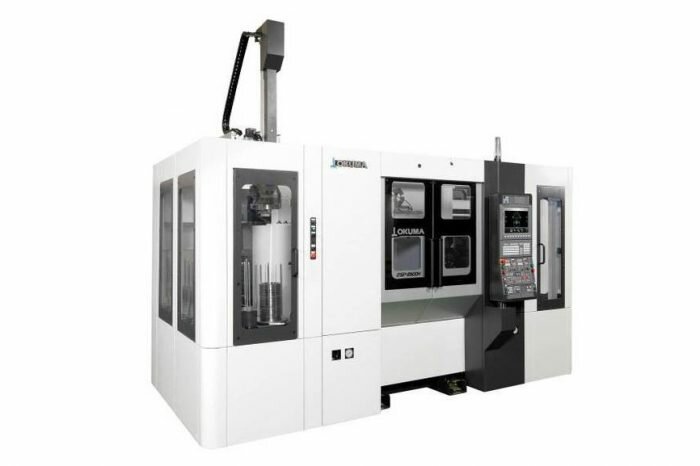

Okuma adds the 2SP-2500H CNC lathe to its line of a smart machines. The innovative front-facing twin spindles provide significantly higher levels of productivity and far greater reliability in mass production, especially for automotive parts. The compact automation-ready machine provides excellent floor space utilisation and integrates two lathes into one unit with a standard loader for continuous front and back work.

The latest entry in Okuma’s 2SP-H Series of two-spindle CNC lathes is designed to provide consistent quality in mass production while increasing efficiency through process-intensive machining and automation. The lathe enables stable unattended production over long runs via a high-speed loader feeding blanks. Due to the machine’s unique design, the loader is able to enter the 2SP-2500H regardless of the turret’s position. Since turret retraction is not necessary, workpiece transport and changeover times are greatly reduced.

With 5,000min-1, the lathe’s turning spindle offers the fastest spindle speed of its class. The 2SP-2500H offers unrivalled floor space utilisation with the smallest-in-class machine width of 2,200 mm. Despite its compact dimensions, the machine features an impressive maximum turning diameter of 250 mm.

The 2SP-2500H is 20% faster than previous models. With a maximum spindle speed of 6,000min-1 and a doubled max motor output of 7.1 kW, the machine’s milling capabilities are on par with that of a small machining centre. Other applications include powerful face milling, drilling and tapping.

Okuma’s Intelligent Technology application Thermo-Friendly Concept minimises thermal deformation and enables supreme accuracy. Okuma’s Tool Life Forecaster predicts the remaining time before an exchange is required and prevents cutting edge breakage, thus reducing costs.

Source:Okuma

More information:

The official Okuma page.
