A new flagship for quick-change pallet technology

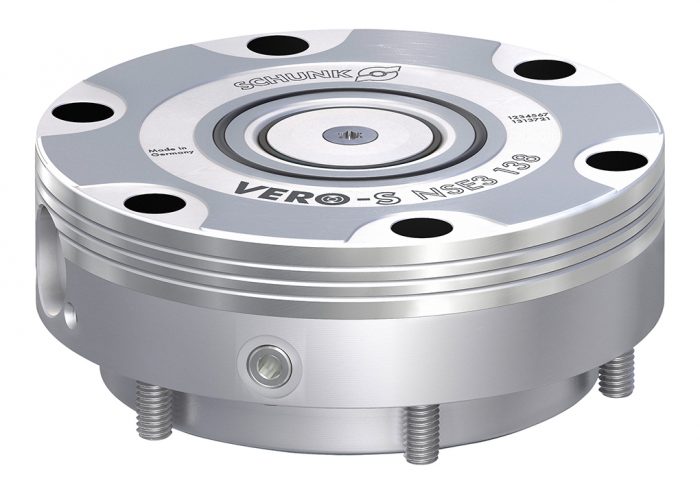

SCHUNK, the competence leader for gripping systems and clamping technology, is introducing two premium quick-change pallet modules with unique features on the marekt: The VERO-S NSE3 138 quick-change pallet module and the VERO-S NSE-T3 138 tombstone module.

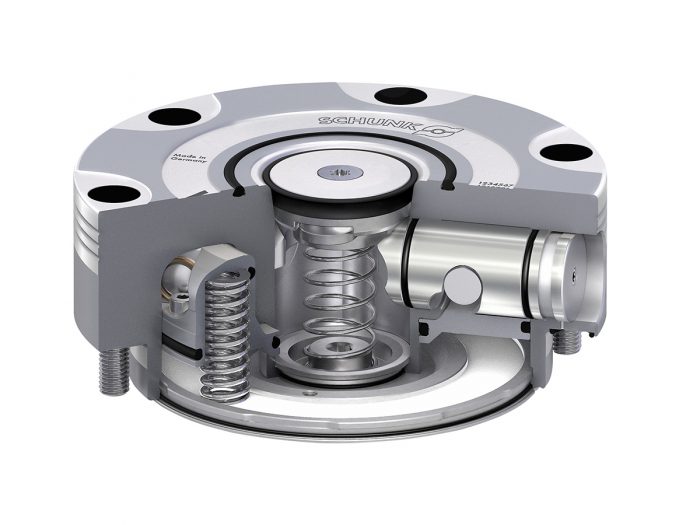

Their most striking feature is an optional spring-actuated cone seal that automatically locks the module’s changing interface as soon as the clamping pin is lifted. In combination with the integrated blow-out function, the quick lock prevents chips or dirt from lodging into the interface. Without changing the height, it locks the last gateway of the otherwise completely sealed modules.

Pull-down force and rigidity have been increased even further

SCHUNK has yet again boosted the performance characteristics of the VERO-S NSE3 138 as compared to previous top sellers. An enormous pull-down force of 8,000 N or 28,000 N with activated turbo function as well as increased dimensional stability for the module body have a positive impact on the rigidity of the clamping solutions. Thus, even the highest tilting moments and transverse forces can be reliably absorbed when parts are clamped at the base are machined on at height, for example. Clamping and positioning also occur via a short taper with a repeat accuracy of < 0.005 mm with the premium modules. This ensures maximum precision even in the most demanding applications. Due to the conical fitting, the clamping pins can also be joined into the modules eccentrically, making this process incredibly easy. The actual clamping is done via spring force without any external energy supply; it is form-fit and self-locking. The workpieces remain safely clamped in case of a sudden pressure drop in the air system. A pneumatic system pressure of 6 bar is sufficient to open the clamping modules.

Pull-down force and rigidity have been increased even further

SCHUNK has yet again boosted the performance characteristics of the VERO-S NSE3 138 as compared to previous top sellers. An enormous pull-down force of 8,000 N or 28,000 N with activated turbo function as well as increased dimensional stability for the module body have a positive impact on the rigidity of the clamping solutions. Thus, even the highest tilting moments and transverse forces can be reliably absorbed when parts are clamped at the base are machined on at height, for example. Clamping and positioning also occur via a short taper with a repeat accuracy of < 0.005 mm with the premium modules. This ensures maximum precision even in the most demanding applications. Due to the conical fitting, the clamping pins can also be joined into the modules eccentrically, making this process incredibly easy. The actual clamping is done via spring force without any external energy supply; it is form-fit and self-locking. The workpieces remain safely clamped in case of a sudden pressure drop in the air system. A pneumatic system pressure of 6 bar is sufficient to open the clamping modules.
