High-performance vertical machining

High-performance vertical machining up to 1,500 kg, 700 mm Y-axis travel and SK50 spindle with 303 Nm

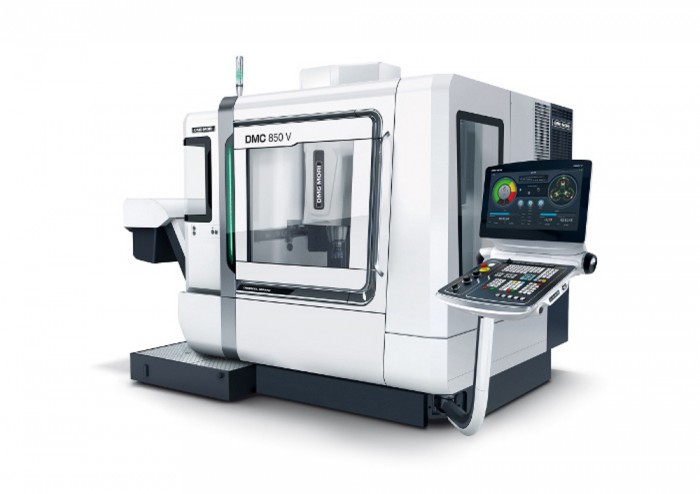

01-dmc-850-v

Powerful features as standard

The design of the new vertical-spindle range is based on a cast mineral machine bed on which the cast iron column rests. This forms the base for the X / Y slideways. The machine table is fixed and incorporated into the machine bed, thus enabling very high table loads of 1,000 kg with the DMC 850 V and 1,500 kg with the DMC 1150 V to be accommodated. The clamping surface is 1,100 × 570 mm and 1,400 × 750 mm respectively. Generously sized guides and ball­screw drives ensure high stability. This self-contained concept provides clear demarcation from the cross table design which is prevalent in the market. It is based on experience of more than 10,000 vertical machining centres sold. The moving masses are always the same regardless of the workpiece weight, and the constant dynamic behaviour has a positive effect on component accuracy.

The rapid traverse speed is 36 m/min on all axes. However, thanks to the cooling of the ball-­screw nuts and linear guideways, the friction heat is effectively dissipated and the accuracy is therefore actively increased. With travels of 850 x 520 x 475 mm and 1,150 x 700 x 550 mm, the DMC 850 V as well as the DMC 1150 V extend the new vertical-spindle range upwards.

Highly flexible features for highest productivity

Along with the basic 14,000 rpm/121 Nm spindle, optional speeds up to 24,000 rpm are also available. An SK 50/ HSK A100 motorised spindle with 10,000 rpm and 303 Nm provides adequate reserves for heavy-duty chip removal. The tool magazine with 20 pockets as standard can optionally be extended to 120 pockets. As well as its use in workshops and component manufacturing, the new range also offers a diverse application spectrum in all sectors, from sophisticated single part production to heavy machining and serial production combined with various automation solutions.

The two world premieres are presented in the new DMG MORI design for more functionality, user friendliness and ability to hold their value. Large safety glass windows ensure maximum visibility into the work area and thus provide better monitoring of the manufacturing process. In addition, the windows can be removed from the outside, which facilitates easy removal when servicing is required. The finely textured long-life surfaces in the working area provide increased scratch resistance and better protection against damage. The new DMG MORI design is available in “BLACK” or “WHITE” for increased individuality at no additional cost.

Controls of the latest generation – also with CELOS

The range is available with the 19” ERGOline® with HEIDENHAIN TNC640 and Operate 4.5 on SIEMENS 840D solutionline. This will be followed in the 2nd quarter of 2014 by CELOS from DMG MORI with 21.5” ERGOline® and SIEMENS.

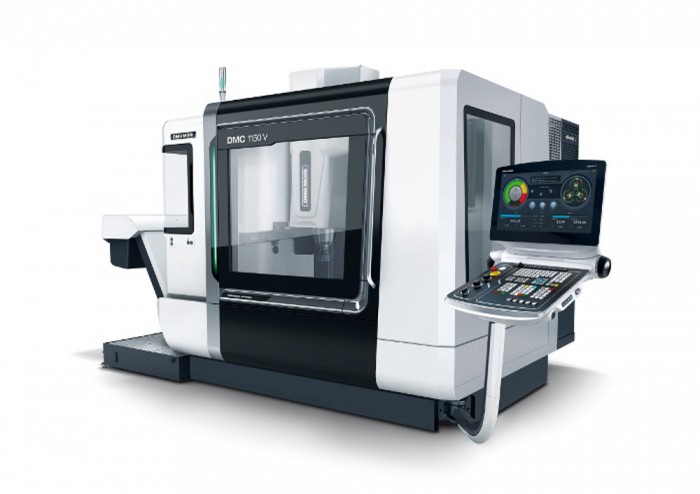

DMC 1150 V – up to 1,500 kg, 700 mm Y-travel and SK50 spindle with 303 Nm

DMC 1150 V – up to 1,500 kg, 700 mm Y-travel and SK50 spindle with 303 Nm



doppelbild-data

Highlights of the DMC 650 V, DMC 850 V, DMC 1150 V

  • Powerful features as standard – Basic spindle with 14,000 rpm / 121 Nm, 36 m/min rapid traverse
  • SK 50 spindle with 303 Nm for heavy-duty chip removal (option)
  • Tool magazine up to 120 pockets
  • Highly stable design with rigid table and overhead slideways
  • High workpiece weights up to 1,500 kg
  • Cooling of drives and guideways for maximum temperature stability and guaranteed accuracy
  • With the experience of more than 10,000 vertical machining centres sold
